Monofilament Yarn Spinning Machine

Monofilament Yarn Spinning Machine
Monofilament Yarn Spinning Machine
Price And Quantity
  • Piece/Pieces
  • 1
  • Piece/Pieces
Product Specifications
  • Spinning Production Line
  • 1-100
  • Yes
  • Automatic
  • Human Machine Interface
  • Air Cooling
    Product Description

    Monofilament Yarn Making Machine

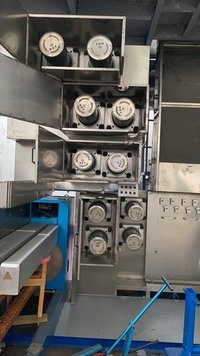

    Featured with latest mechanism, the Monofilament Yarn Spinning Machine uses nylon, PET and polypropylene as its raw materials to produce yarns. These types of yarns are required to weave fishing net, rope and single monofilament net. With having high production capacity, this precisely developed spinning machine adopts cutting edge PLC controlled automatic controlling system. The electronic interlocking facility of this machine helps it to avert any possible mechanical damage. Notable for its heavy duty design, this machine is appreciated for its long working life. We are an eminent manufacturer and exporter of standard grade Monofilament Spinning Machine.

    Features

    • The offered spinning equipment is easy to operate and maintain
    • It uses specially developed spinning beam to reduce its energy usage
    • Long working life
    • Trouble free operation

    This spinning machine is utilized  to make coarse denier industrial yarn from polypropylene, polyester and  nylon, which is mainly used to fishing nets, ropes, high density fabric, scarf,  wedding dresses,mask, shoulder pads,black-out cloth etc.

    The main features

    • Screw is re-enforced
    • A new energy-efficient spinning bean is utilized, which is much more energy saving than regular spinning beam.
    • Melt stays not very long time inside the spin beam.
    • The spinnerets with a large board, high flow and high pressure spinning pump
    • Unique water-cooling device makes the spun filaments featured by a low degree of orientation, that with out crystallization structure and good tensile properties
    • Efficient receiver, reducing equipment investment costs.

    Technical Parameters

    Item

    Unit

    Parameters

    Density

    Denier

    15-200

    Spinning speed

    m/min

    200-500

    No. of mono filament



    60,120

    No. Of filament

    mm

    10-60

    Diameter of screw

    mm

    Ø80-150

    Diameter of draft godet

    mm

    Ø300

    No.Spindles



    120

    Capacity per position (for 1,000D)

    T/d

    1.9T/2.6T/3.8T

    Trade Information
    • 120 Per Month
    • 90 Days
    • Wooden box + Plastic film
    • Asia, Central America, North America, South America, Eastern Europe, Middle East, Africa
    • All India
